MDG-08e
Smart Dose Rate Meter
Gamma detectors for the measurement of dose or dose equivalent rates with large measurement range.
Nuclear power plants
Waste management
Calibration laboratories
Research centres
Nuclear medicine
Industry & manufactoring
Key Features
- A wide dose rate measurement range from background levels up to 100 Sv/h
- Automatic detection of GM tubes failure (without using a radioactive check source)
- Two adjustable alarm levels
- Archive of values for at least 180 days
- Suitable for outdoor use
- Temperature measurement inside the detector
- Status LED
- Compliant with IEC 60532, IEC 60846-1
Description

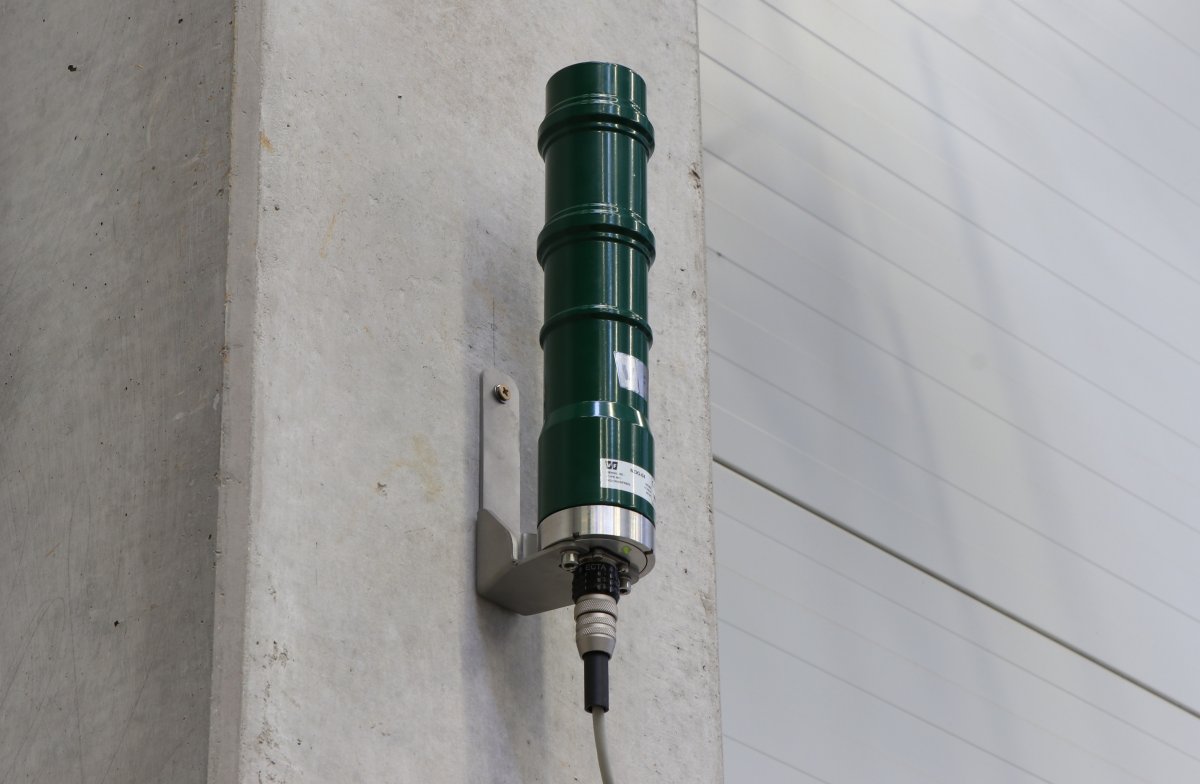

MDG-08e detectors are designed for dose rate measurement, especially in area and environmental monitoring.
As standard, the detectors are equipped with two GM tubes. Some models are also equipped with one additional check GM tube. Each monitor's internal processor control unit converts the GM detectors signals to the actual and average measurement values, archives the average values and ensures automatic fault detection. In selected versions with a third check GM tube, the control unit also provides an advanced automatic GM tubes fault detection.
Product design and specifications are subject to change without prior notice or obligation.
